System tutorial

Create

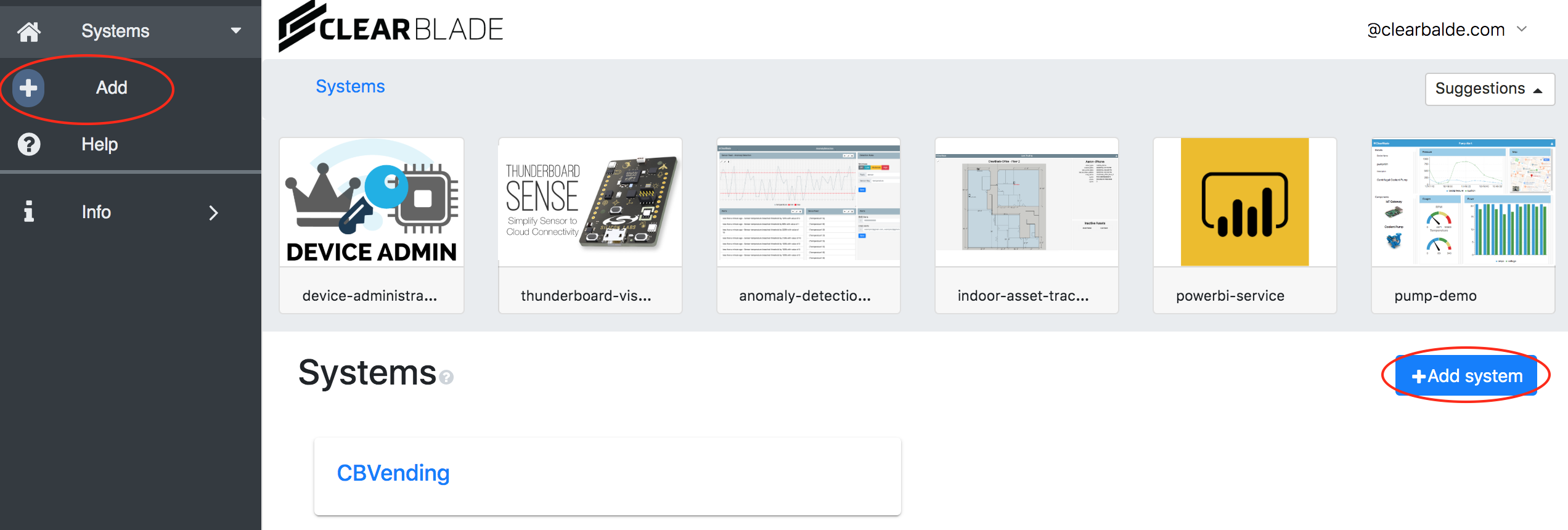

You can add a system by clicking +Add system on the main homepage or + Add on the side navigation bar.

There are four options for creating a system:

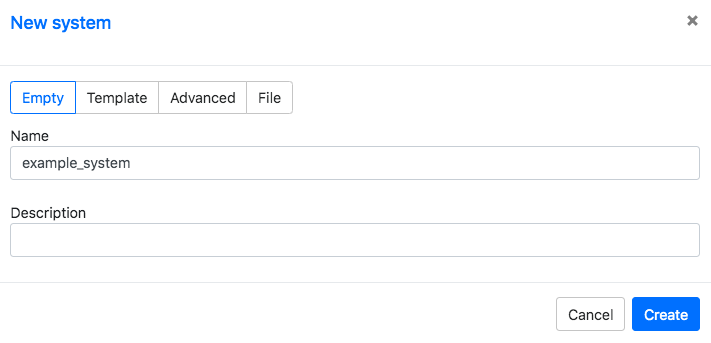

• Empty: Create a new blank system.

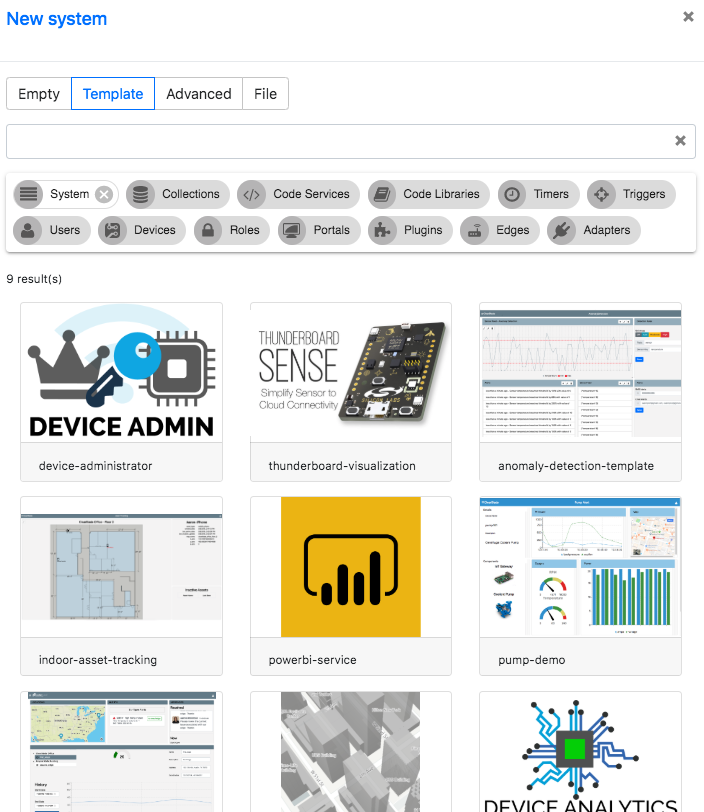

• Template: Choose a pre-made package from the list available.

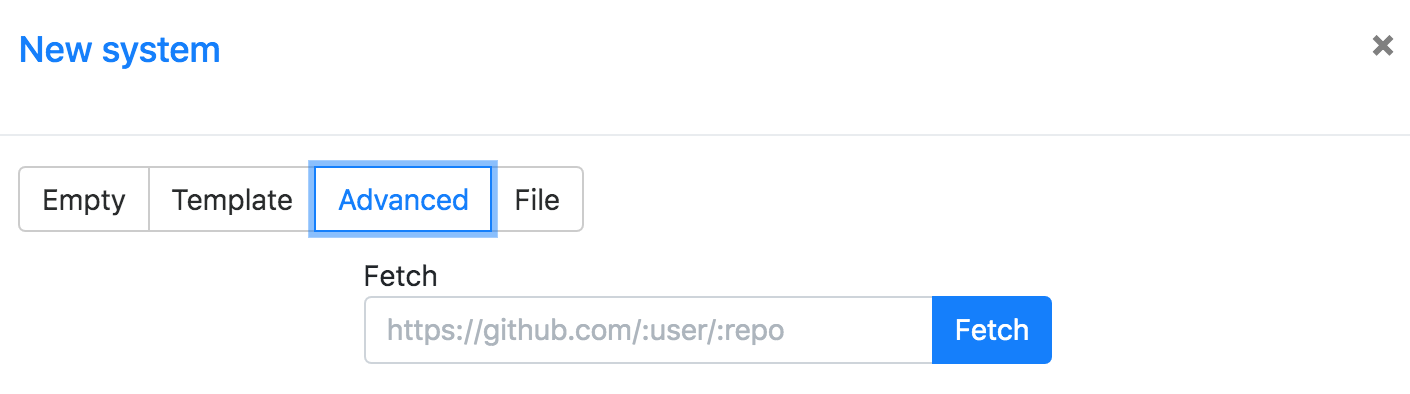

• Advanced: Import your system from your GitHub repository.

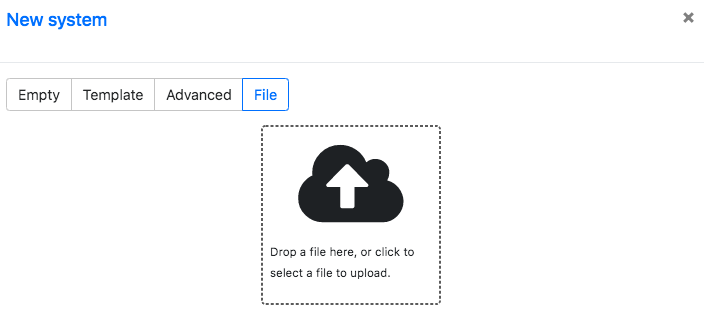

• File: Import your system from your device.

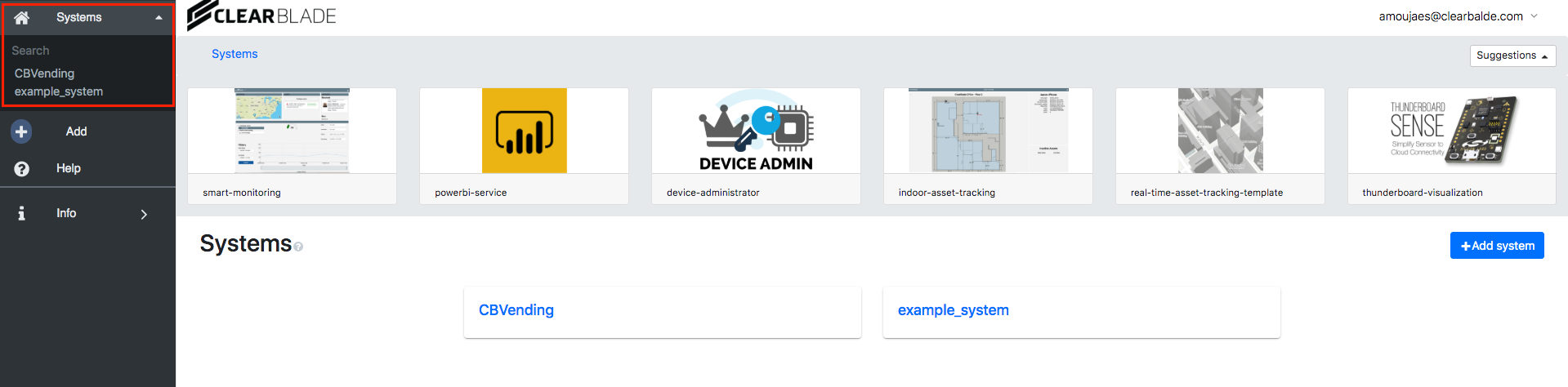

Your new system should be available on the system's homepage and in the side navigation bar's dropdown list.

Configure

To edit the system’s properties and security, click the gear icon by the system’s name. A system may also be deleted in the modal’s Properties tab.

Export

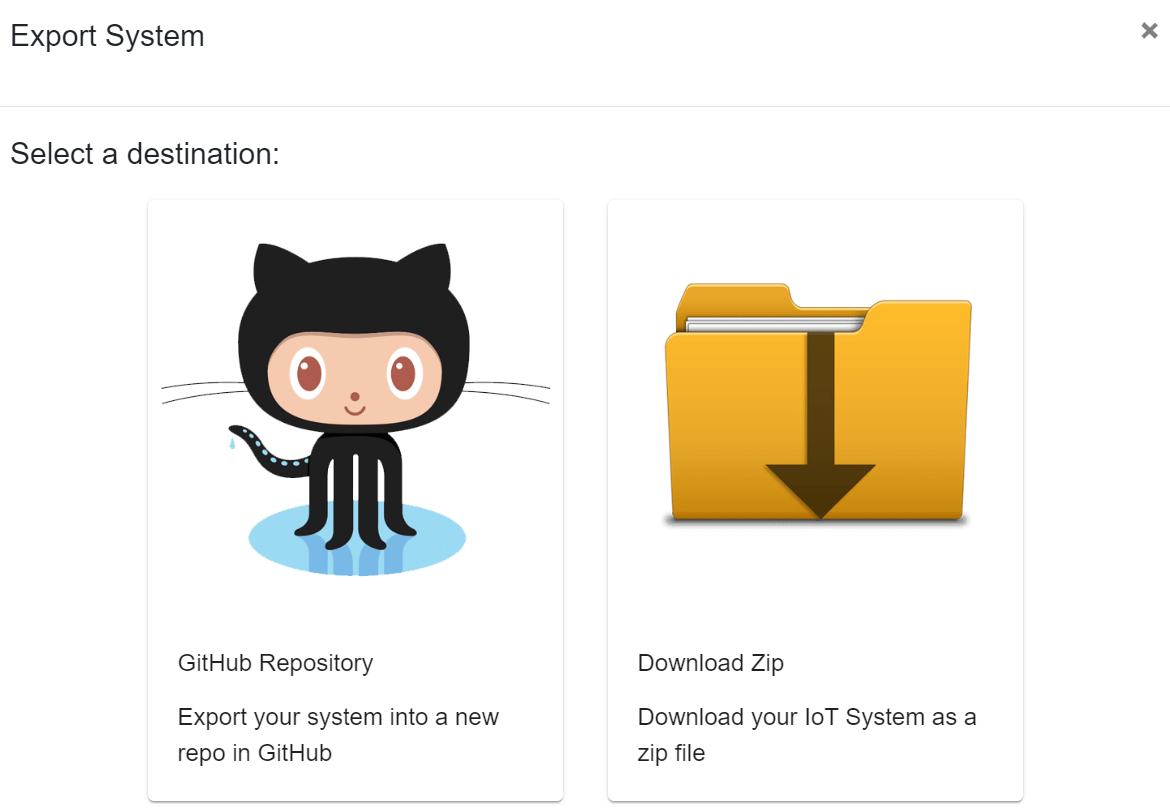

Click Export System to export your system.

Download a ZIP file

1. Select Download Zip.

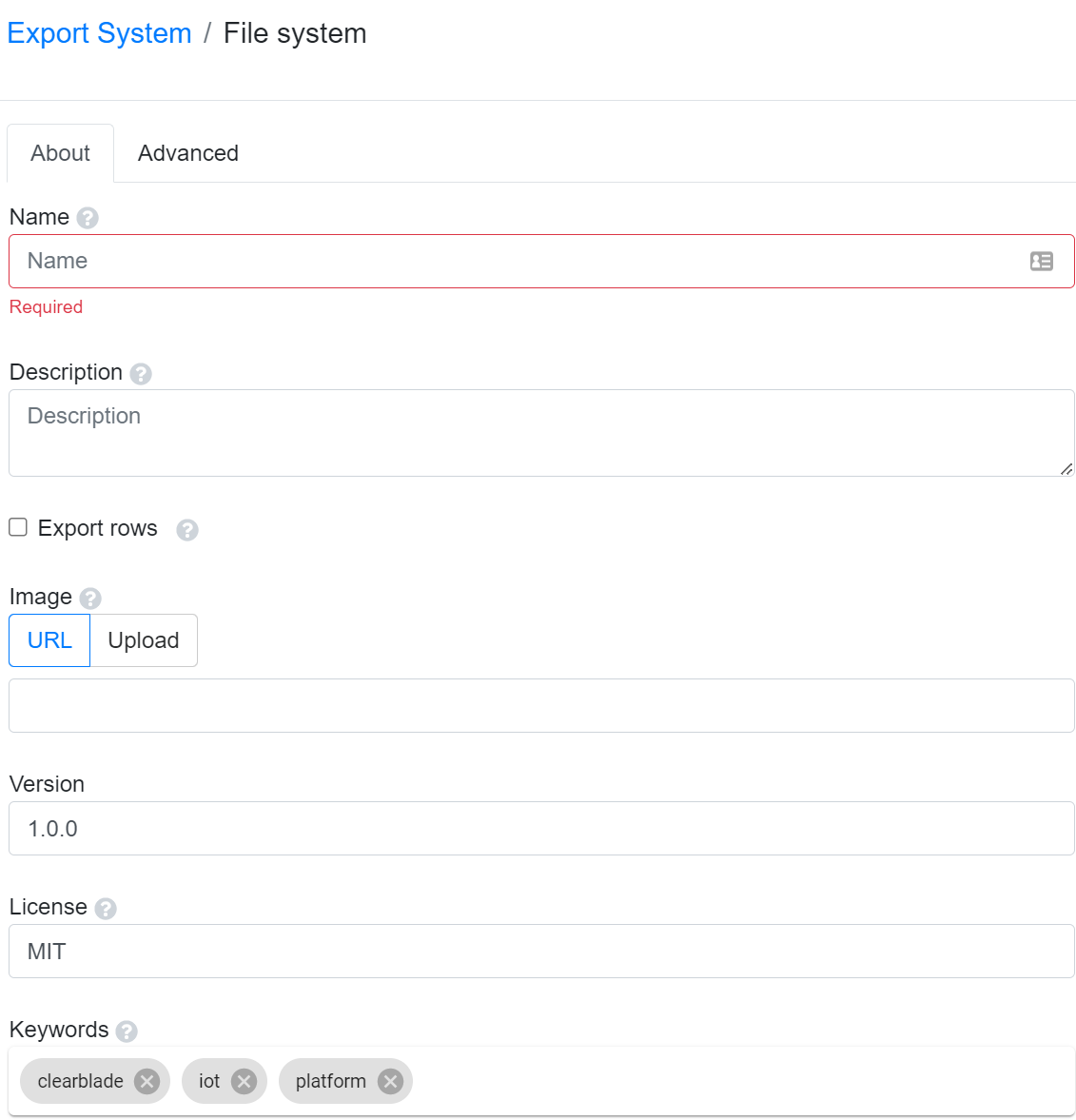

2. Fill out the information in the About tab.

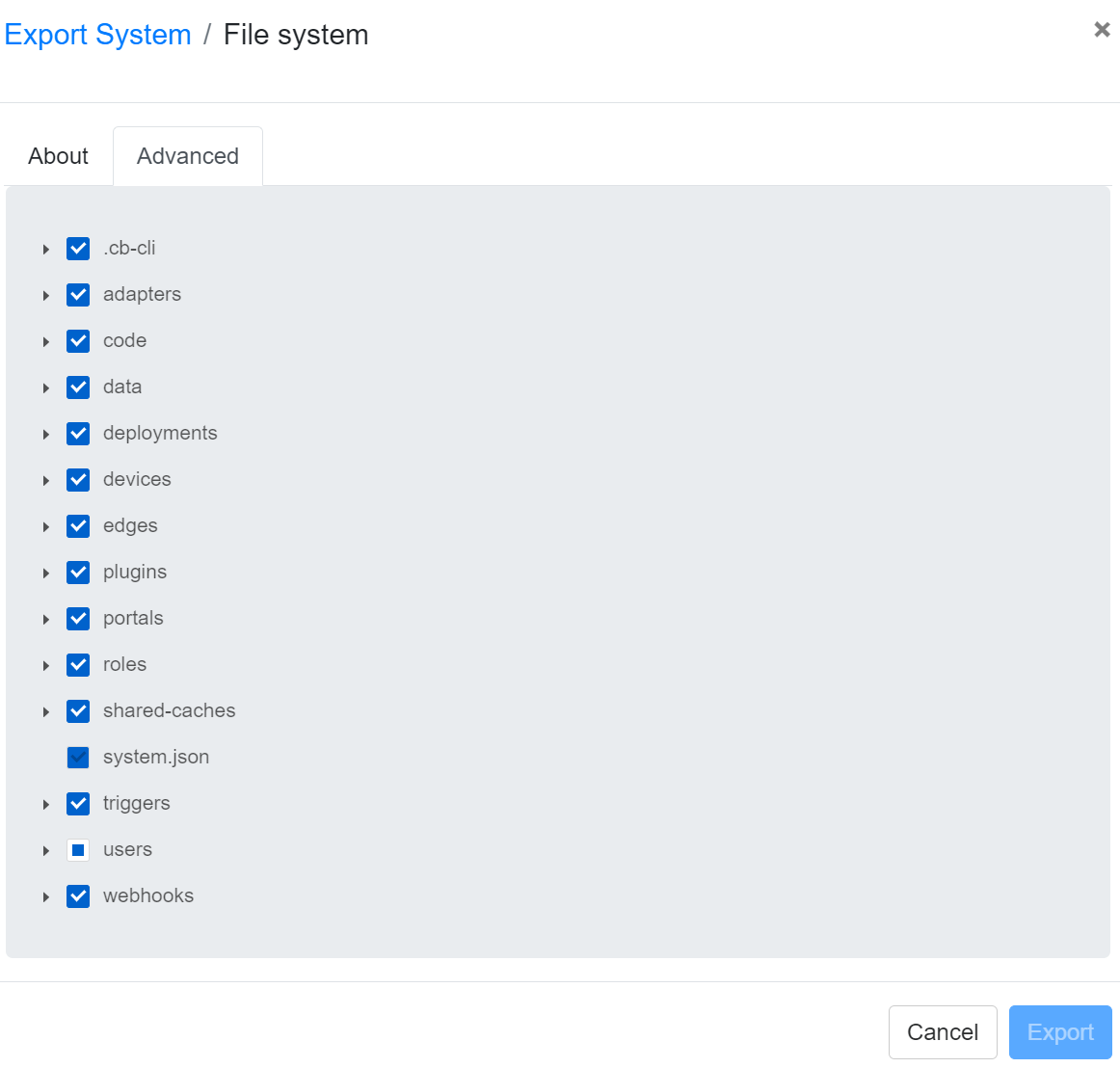

3. Choose what to be exported from the system in the Advanced tab and click Export.

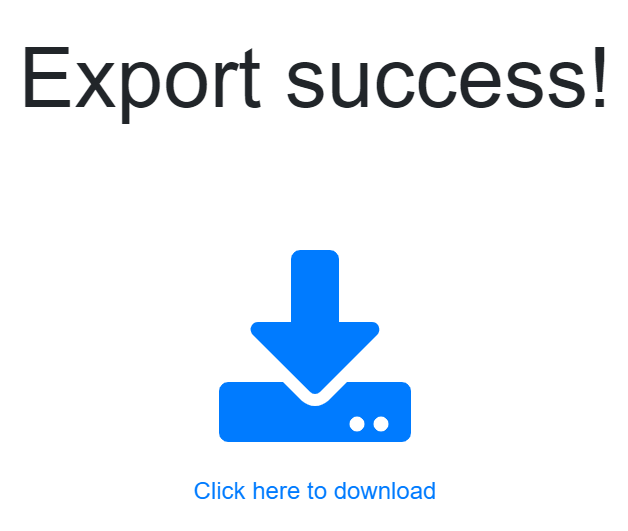

4. Click the download icon to download your system.

5. Unzip the file and open the JSON files for each exported asset to make edits.

GitHub

1. Log on to GitHub.

2. Authorize access.

3. Click Export System.

4. Fill out the About and Advanced modal.

5. Click Export.

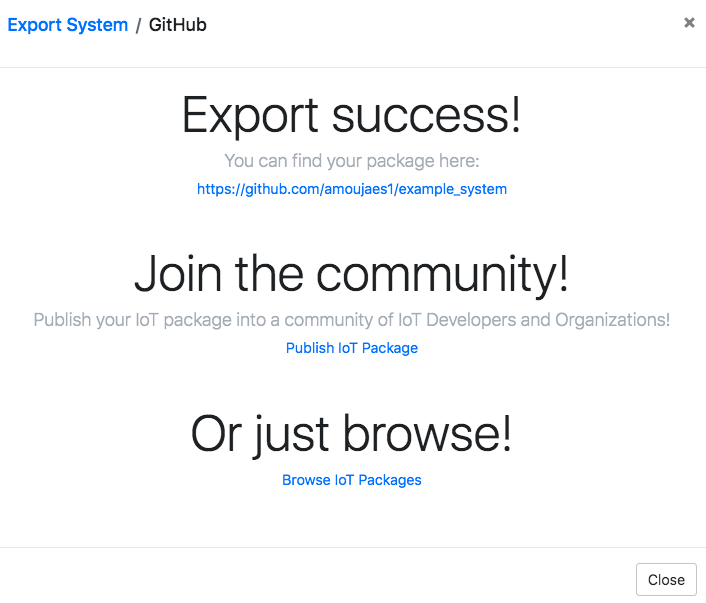

You will see a success message and options to publish or browse IPM IoT packages.
