Device configuration

1. Click Device Config on the left menu:

2. Click the plus icon on the top right of the screen.

3. Select the device type for the configuration you want to create.

4. Step through the configuration workflow to create and specify the required device configuration options. Here is an example configuration:

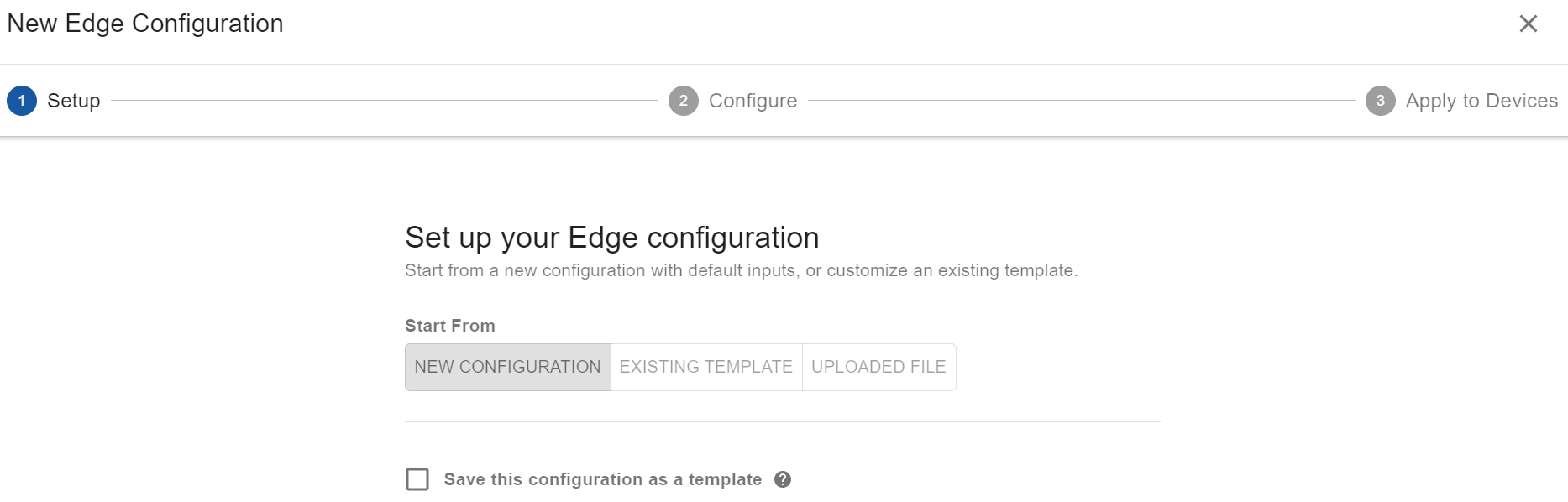

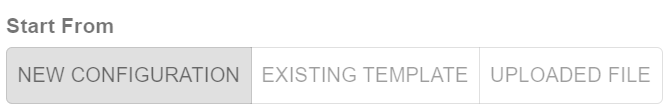

5. You can start from a new configuration, existing template, or uploaded file by clicking the respective button:

6. Choose whether to save the configuration as a template and click the next button.

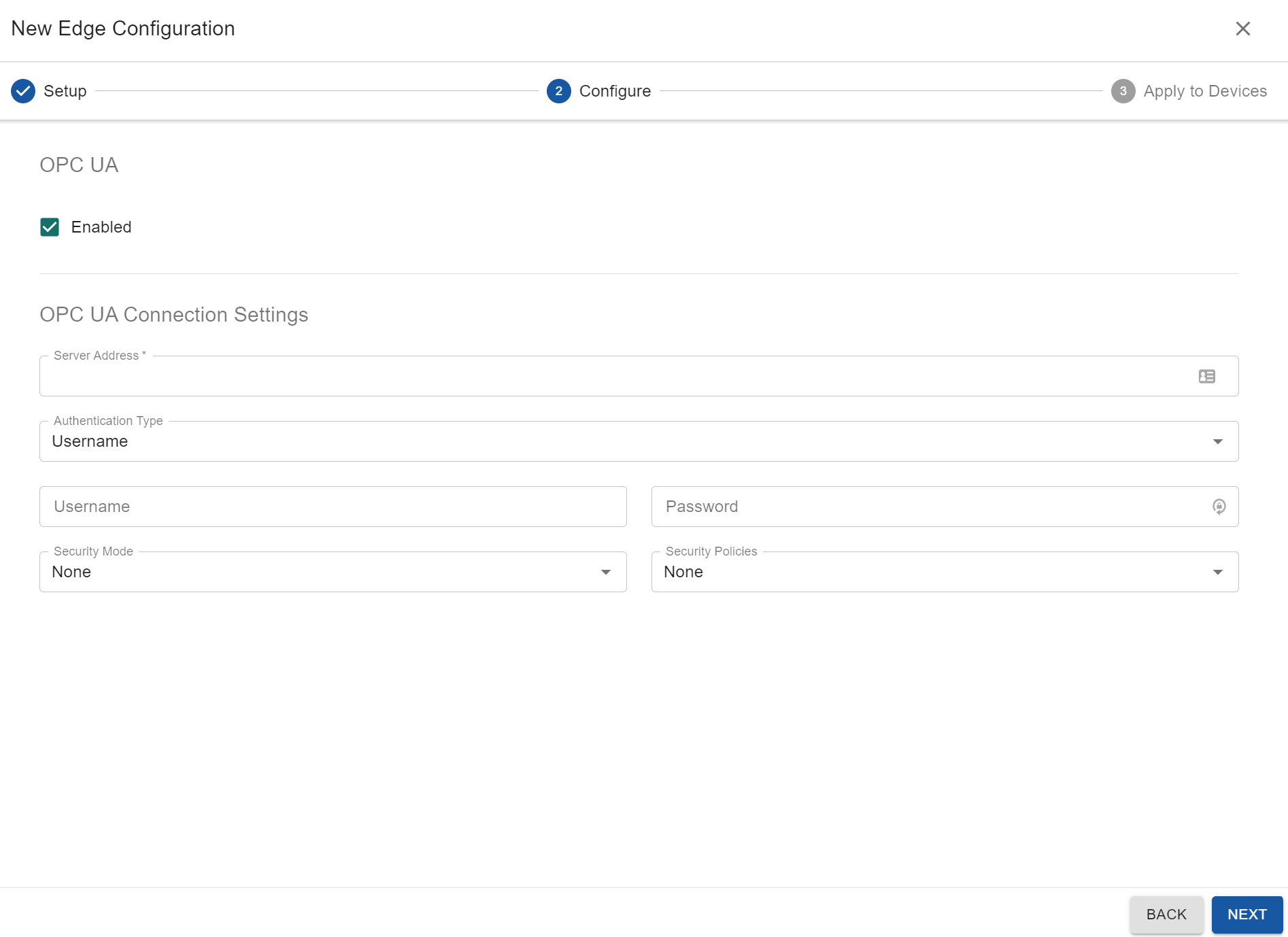

7. In this example, click Enabled, fill out the OPC UA (Unified Architecture) Connection Settings information, and click the next button:

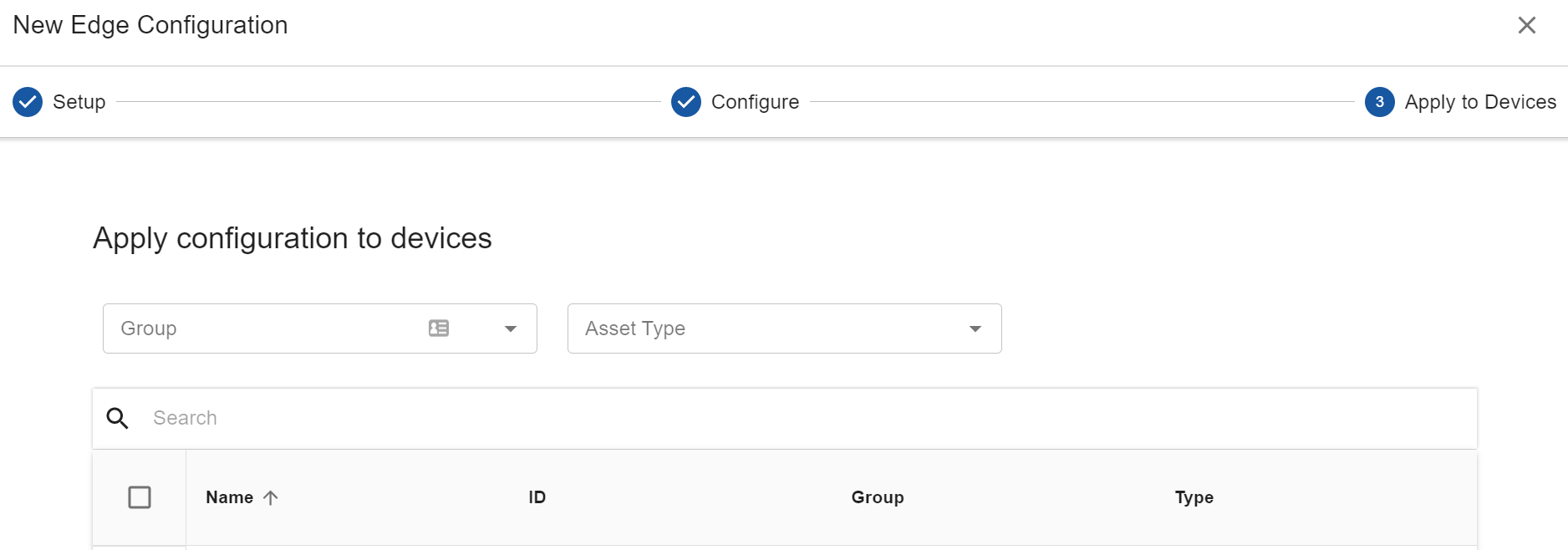

8. You can apply the configuration to the devices on this page:

9. Click the save button when done.

1. Click Device Config on the left menu:

2. Devices appear in the devices tab, and device config templates appear within the templates tab.

3. You can search for devices and templates and filter them.
